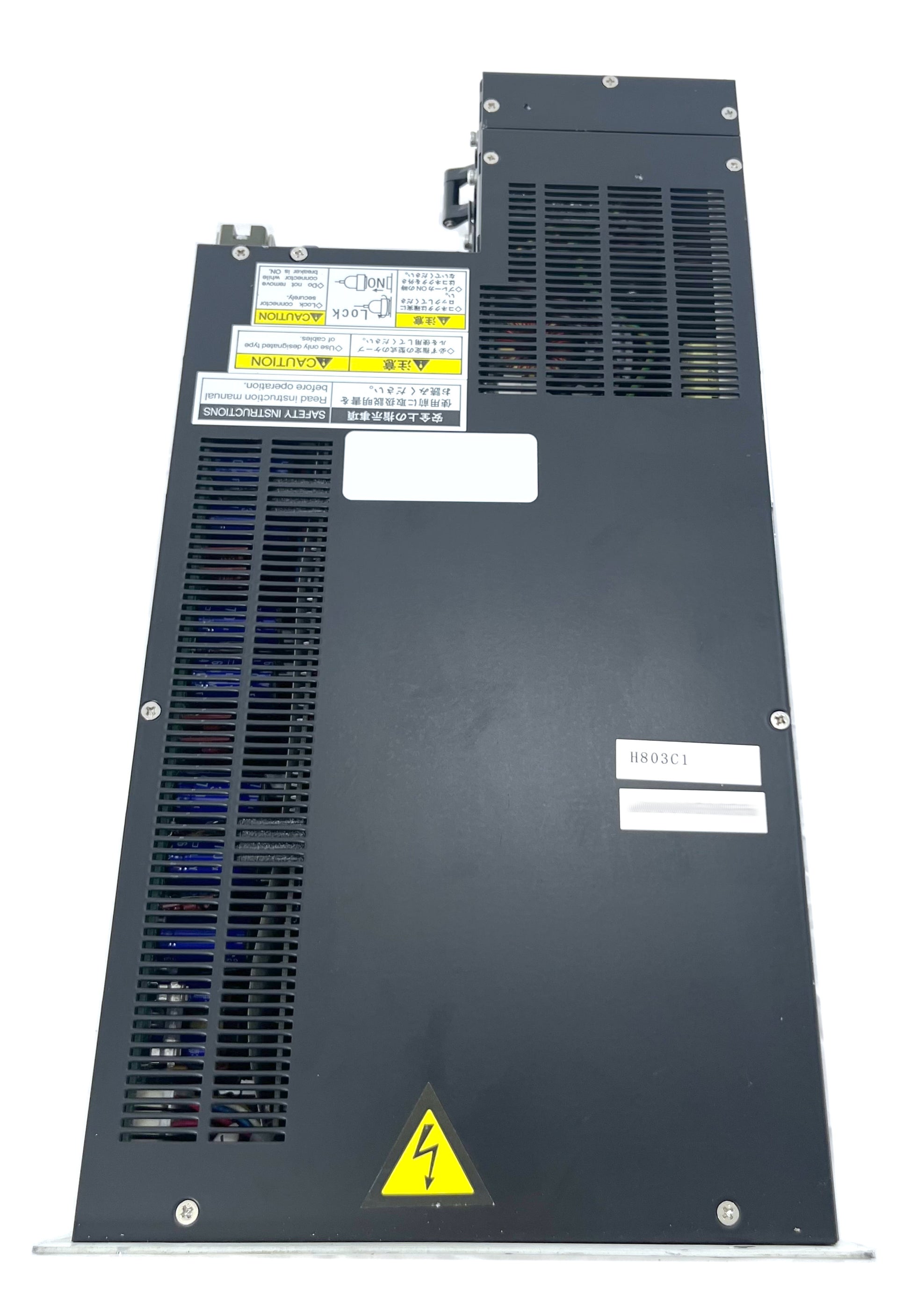

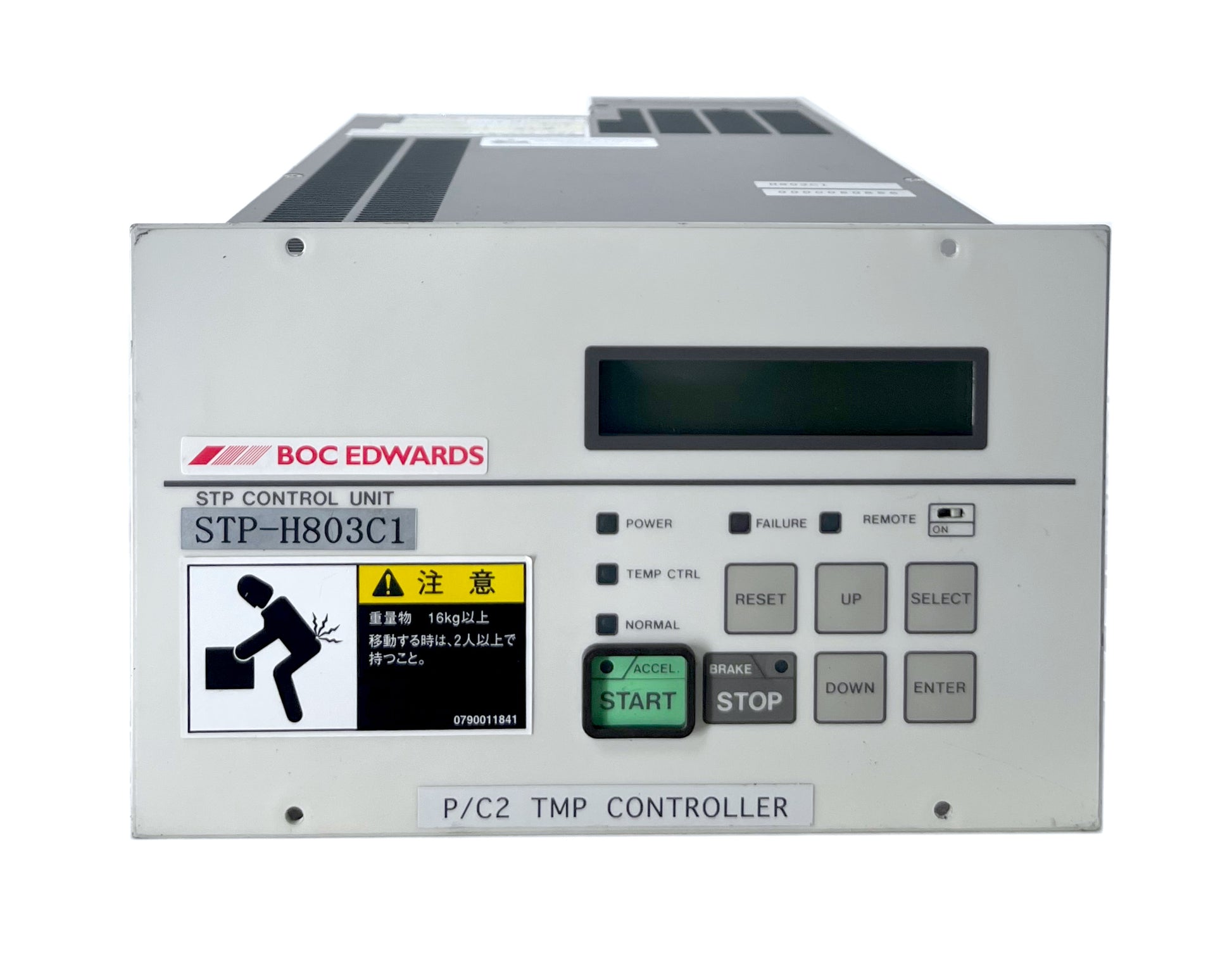

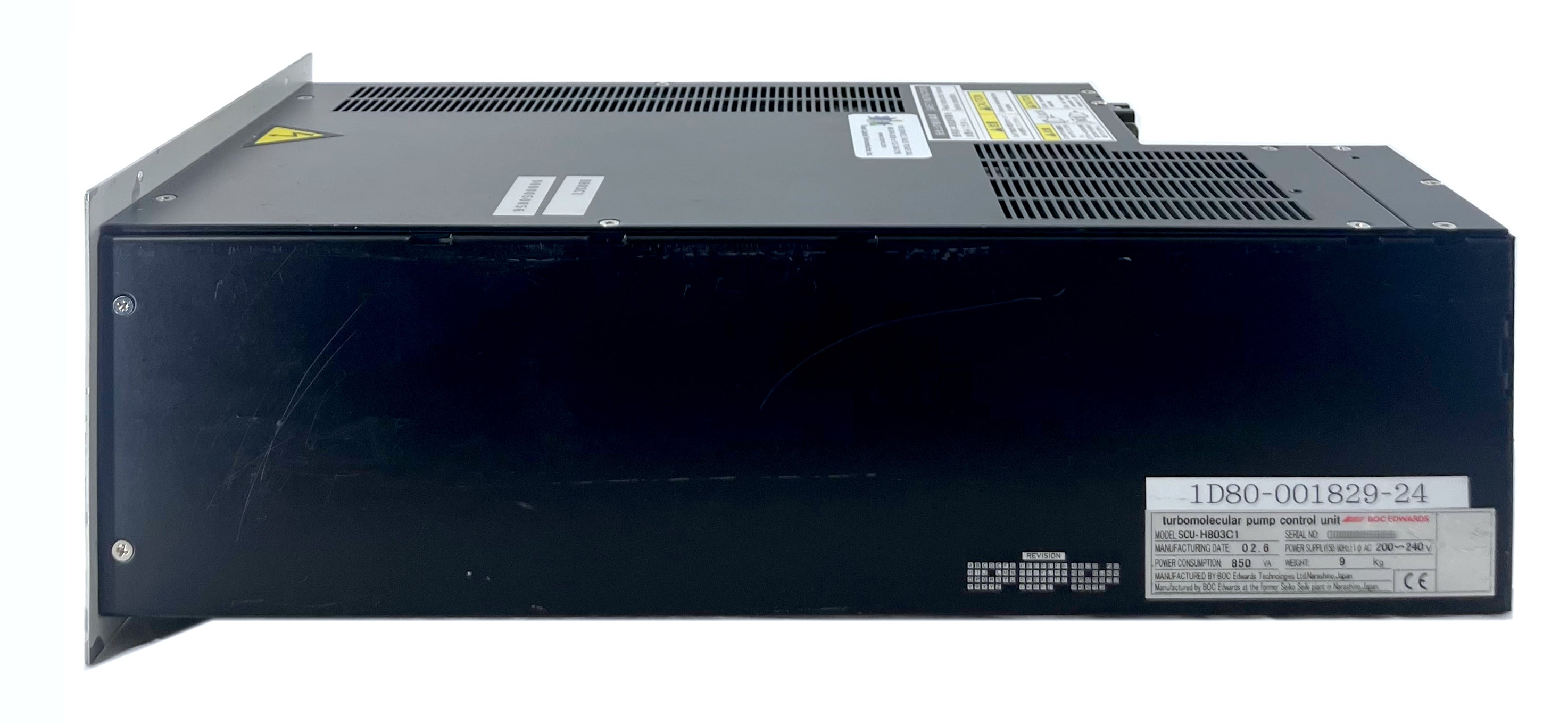

Edwards / Seiko Seiki SCU-H803C1 Turbo Molecular Pump Control Unit

The Edwards / Seiko Seiki SCU-H803C1 is a dedicated 5-axis digital magnetic bearing control unit engineered specifically to drive and monitor the STP-H803 / STP-H803C1 high-throughput turbomolecular pump series.

Unlike general-purpose universal drivers, the SCU-H803C1 is factory-tuned to manage the high rotor dynamics, 5-axis active magnetic levitation, and thermal profiles associated with 800 L/s corrosive-spec Maglev pumps. It features automated rotor balancing, dynamic vibration suppression, real-time diagnostic telemetry, and integrated safety interlocks for harsh semiconductor and analytical vacuum processes.

Technical Specifications

Key Features & Lab Benefits

• Tailored Rotor Dynamics: Pre-tuned frequency profiles matched to the mass and inertia of the STP-H803 rotor assembly, ensuring fast acceleration cycles (<7 minutes) and smooth braking.

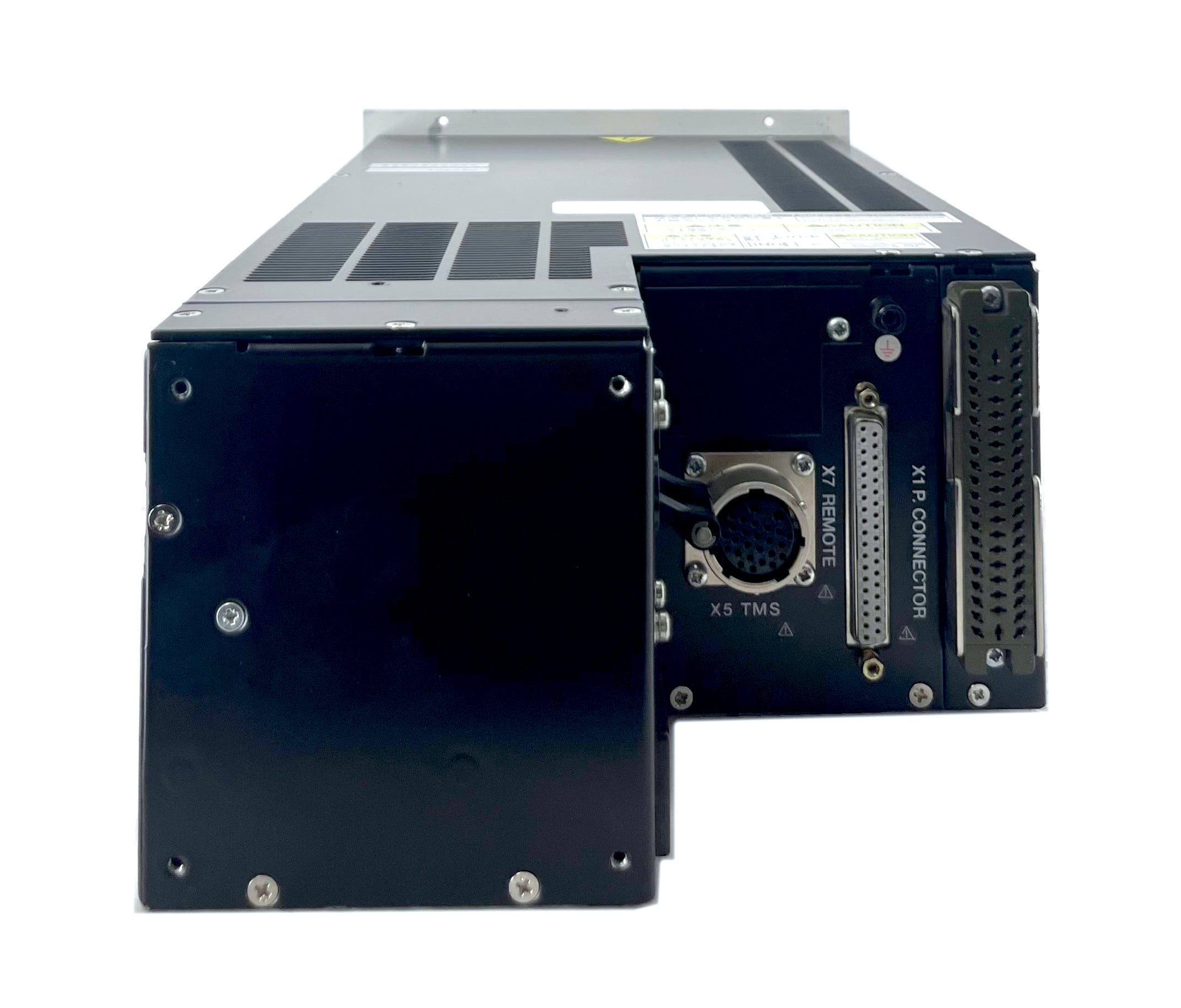

• Integrated TMS & Purge Management: Direct terminal connections to manage heating jackets and N2 purge gas pressure switches required for corrosive gas ("C" spec) operations.

• Active Levitation Monitoring: Continuously adjusts magnetic suspension current across 5 axes to compensate for transient shock or gas-load surges during high-throughput processing.

• Tool Interlock & System Integration: Provides standard logic signals (START, STOP, NORMAL SPEED, FAILURE) for seamless handshake with main system PLC or chamber control software.
