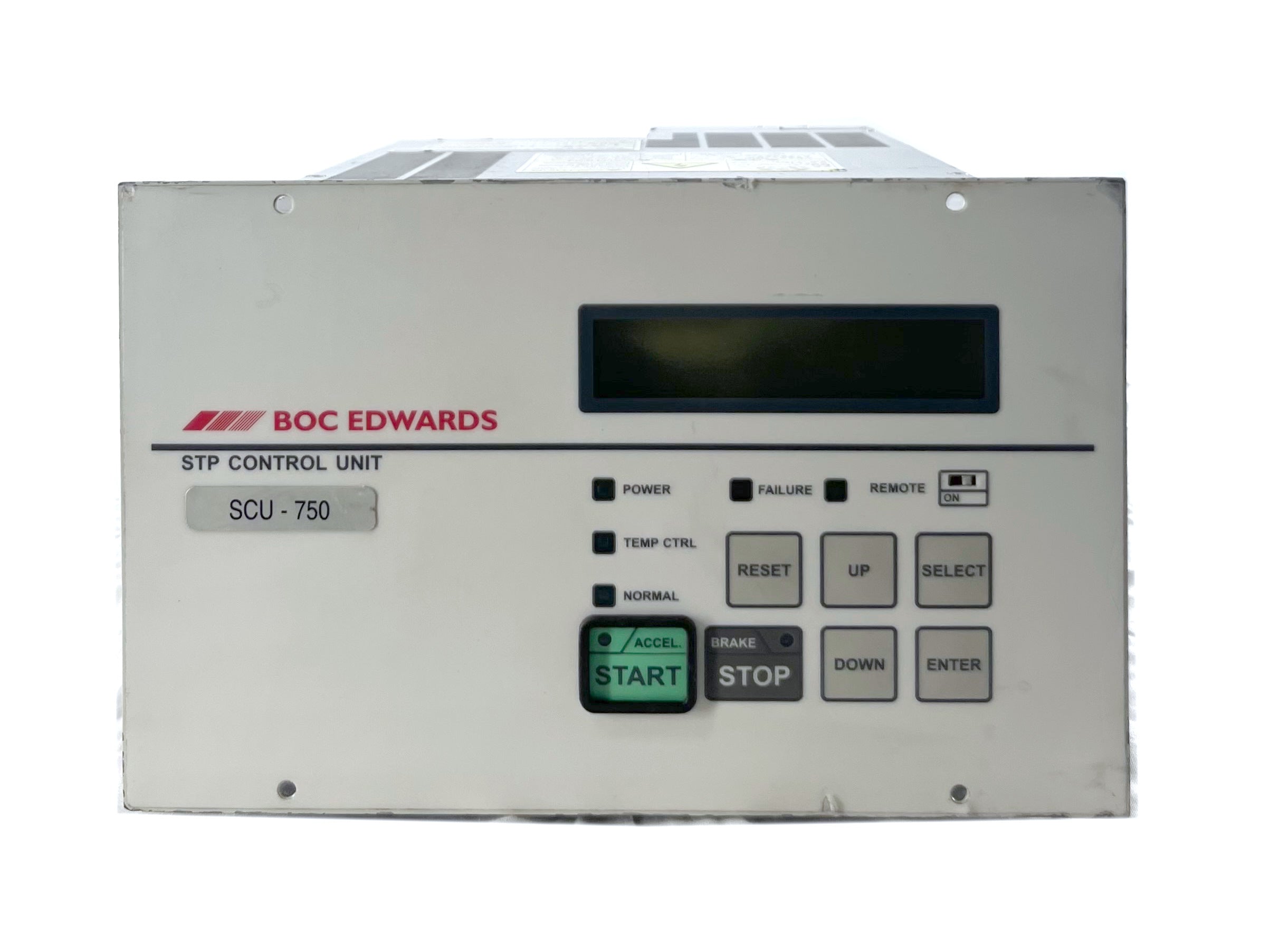

Edwards SCU-750 Turbomolecular Pump Control Unit

The Edwards SCU-750 (P/N PT56Z0Z10) is a high-performance control unit engineered to power and manage magnetically levitated turbomolecular pumps (specifically select STP series models). Designed for demanding industrial, semiconductor, and research vacuum systems, the SCU-750 delivers precise motor driving, advanced magnetic bearing control, and comprehensive system diagnostics in a compact unit.

It provides automatic tuning, rotational speed monitoring, and robust safety protection mechanisms against power interrupts, thermal overload, and unbalance, ensuring smooth, low-vibration high-vacuum operation.

Key Features & Benefits

• 5-Axis Active Magnetic Bearing Control: Maintains stable levitation for clean, hydrocarbon-free ultra-high vacuum environments.

• Auto-Tuning & Diagnostics: Offers automated motor drive optimization and real-time fault detection for system reliability.

• Comprehensive Safeguards: Built-in protection against power failure, excessive vibration, overspeed, and thermal overload.

• Flexible I/O Integration: Features remote parallel I/O and RS-232/RS-485 serial communication for integration into process control systems.

• Compact Rack-Mount Design: Standard enclosure size designed for cleanroom and rack-mount vacuum architecture.

Technical Specifications

Applications

• Semiconductor manufacturing and thin-film deposition tools

• Surface analysis instruments (XPS, SIMS)

• High-energy physics research and particle accelerators

• Industrial leak detection and analytical vacuum equipment
