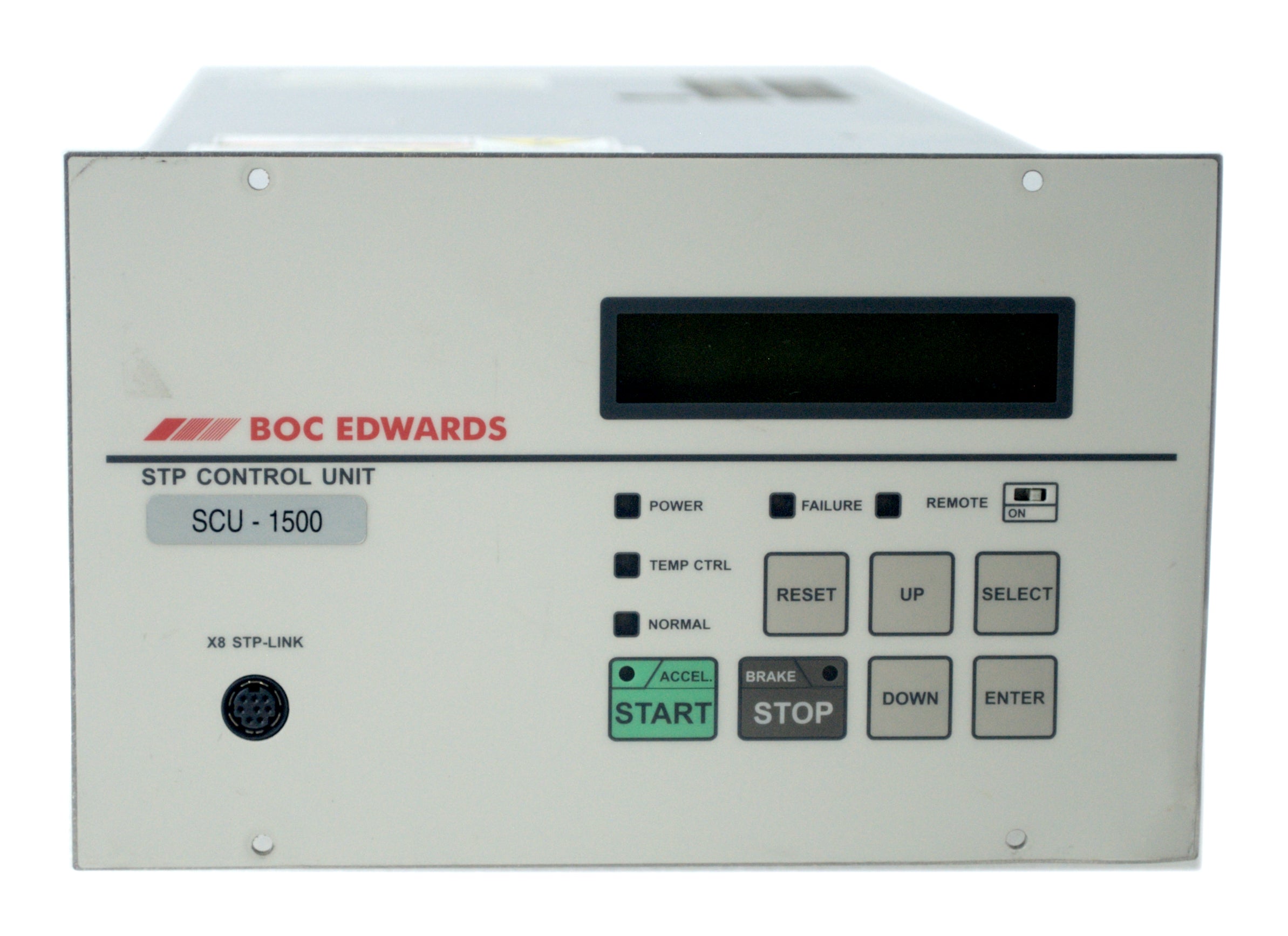

Edwards SCU-1500 Universal Digital STP Turbomolecular Pump Controller

The Edwards SCU-1500 (originally designed under the Seiko Seiki banner) is a high-capacity, fully digital 5-axis magnetic bearing controller engineered to operate heavy-duty, high-throughput STP series turbomolecular vacuum pumps. This controller is famous for its exceptional reliability in high-uptime industrial semiconductor fabrication lines, plasma etching, and chemical vapor deposition (CVD) environments.

The SCU-1500 features an advanced 3-phase brushless DC motor driving network paired with proactive magnetic suspension monitoring. It continuously samples the position sensors of the pump's rotor, processing multi-axis balance adjustments in real time to guarantee ultra-low vibration harmonics. It includes native support for an integrated Temperature Management System (TMS) to regulate internal pump temperatures and eliminate chemical condensation or byproduct deposition during aggressive gas processing.

• Advanced 5-Axis Magnetic Stabilization: Active microprocessor monitoring ensures friction-free levitation, eliminating bearing wear and background vibrational interference.

• Integrated TMS Control Unit: Direct logic connectivity handles internal pump heaters and cooling parameters to manage corrosive process gas environments.

• Industrial Noise Immunity: Excellent EMC isolation shielding guards against electrical line disruptions typical of semiconductor cleanrooms and industrial facilities.

• Comprehensive Automated Safeguards: Real-time interlock protection for pump overheating, electrical overload, rotational overspeed, power failures, and levitation anomalies.

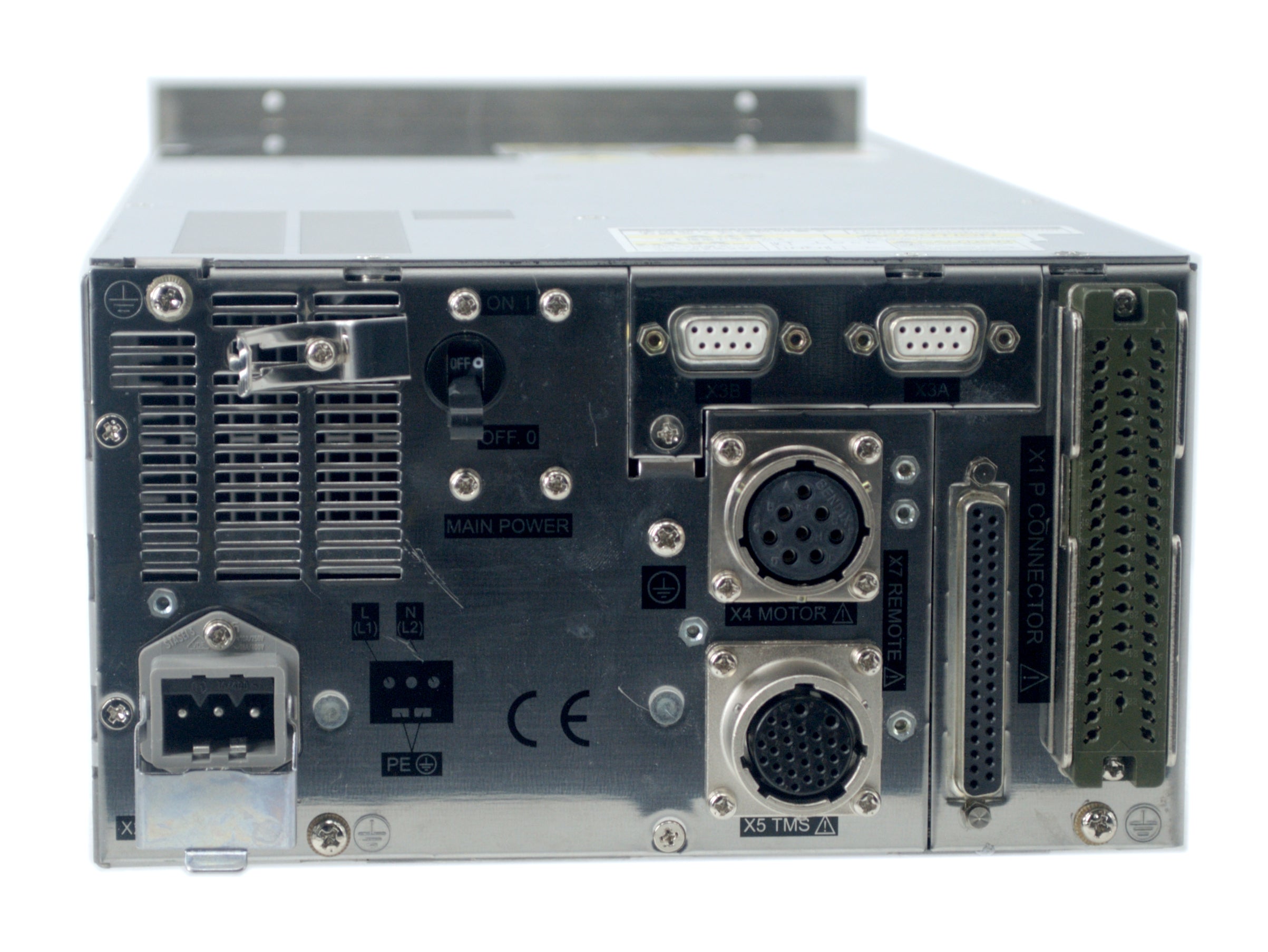

• Robust Communication & Control Arrays: Supports automated remote operations via extensive parallel I/O links alongside dedicated RS-232C/RS-485 serial interfaces.

Technical Specifications & Pump Compatibility

Certified STP Pump Head Compatibility:

• STP-XA2703 Series (Throughput Advanced Line)

• STP-XA3203 Series

• STP-A2203 / A2503 / A3003 Heavy-Duty Configurations

Applications & Tooling Integration

• Advanced Semiconductor Fabrications (Etch, CVD, PVD, Ashing)

• High-Capacity Industrial Coaters and Flat Panel Display Manufacturing

• Extreme Throughput Corrosive Gas Chemical R&D Operations

• Tool integrations on Tokyo Electron (TEL) Telius track platforms
