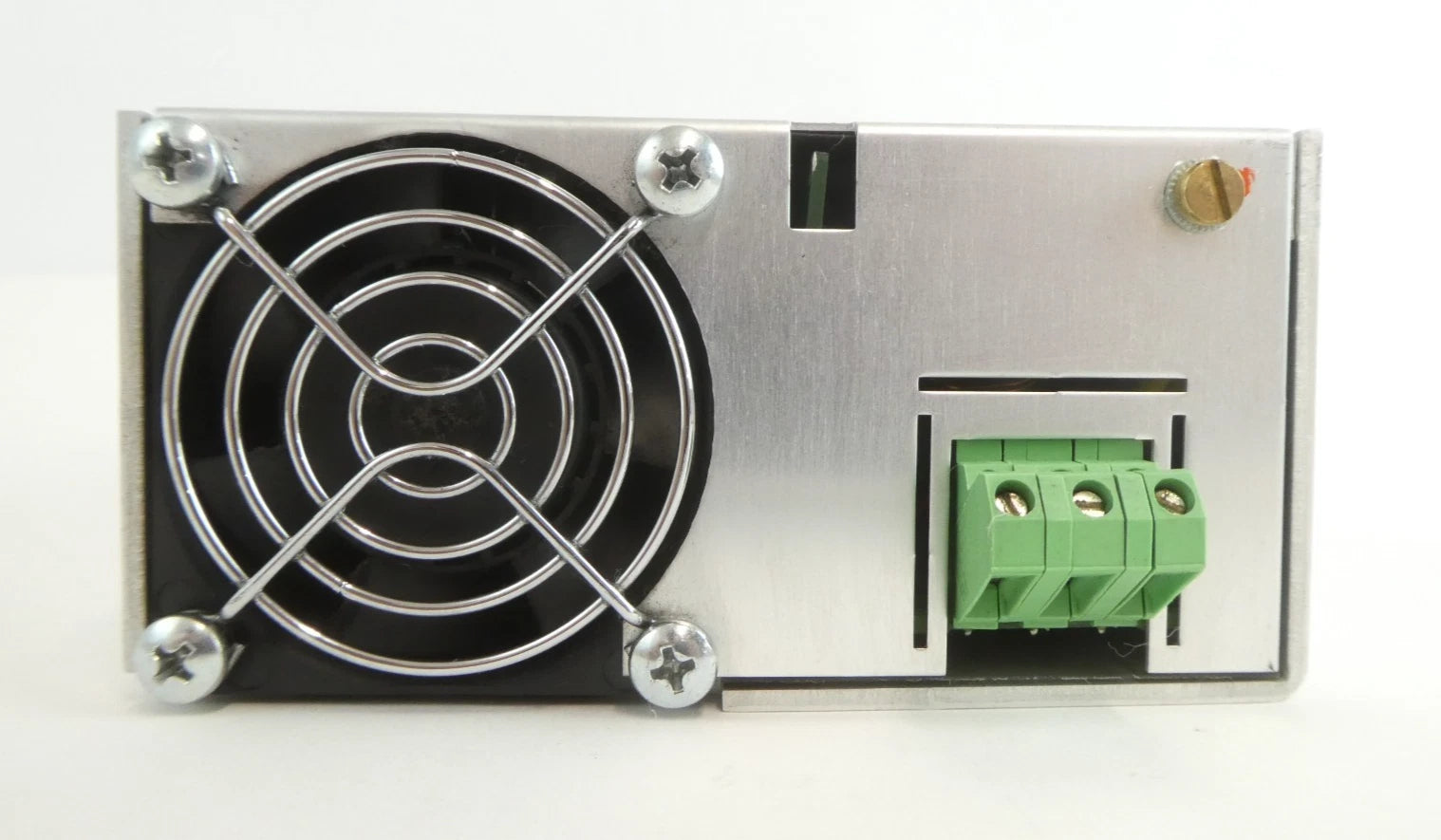

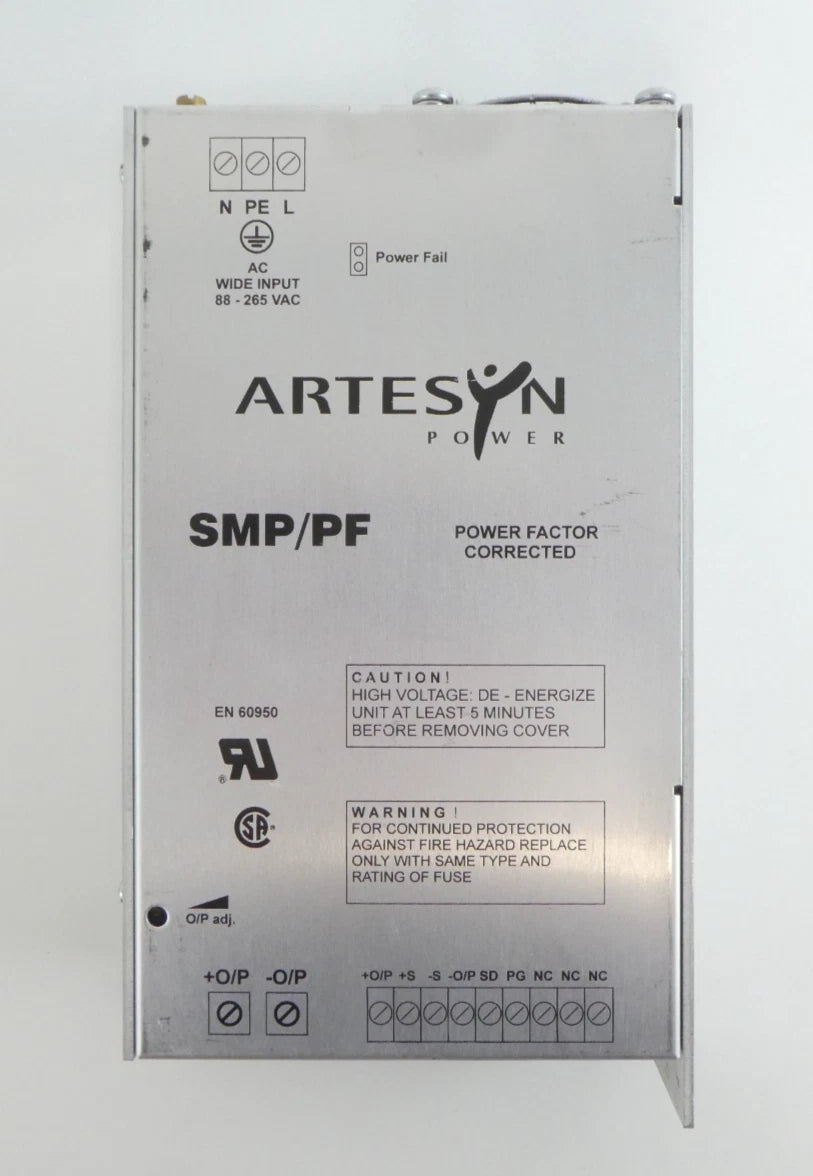

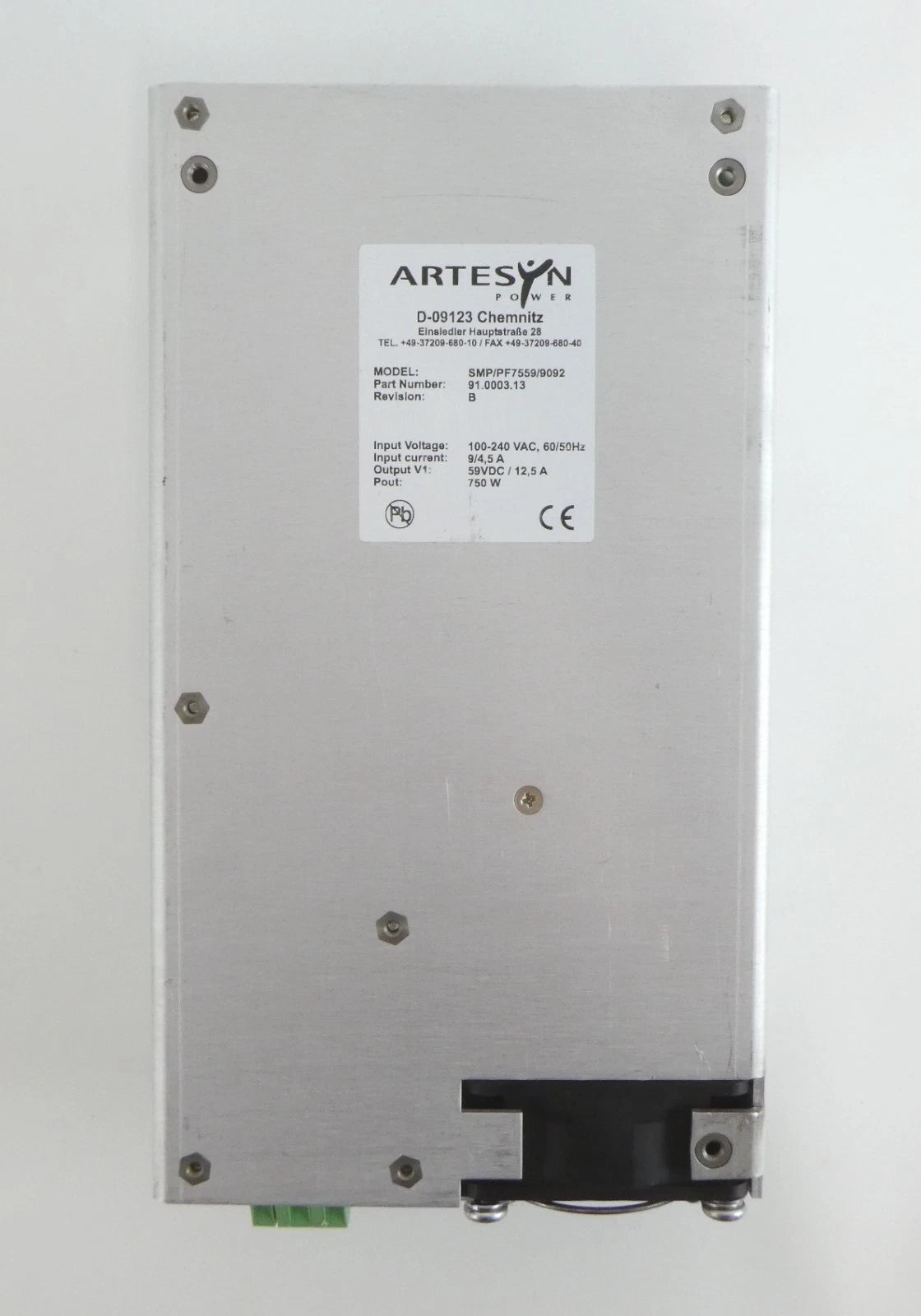

Artesyn SMP/PF 7559/9092 AC-DC Power Supply Module

The Artesyn (Advanced Energy) SMP/PF 7559/9092 is a high-stability, industrial-grade AC-DC power supply module specifically utilized in the power distribution architecture of AB Sciex (Applied Biosystems / MDS Sciex) analytical instruments. Within vacuum-dependent systems like the QSTAR and PULSAR Mass Spectrometers, this module provides the critical 59V rail required for internal control electronics and vacuum management interfaces.

As these systems age, original power modules often fail, leading to communication errors or vacuum system instability. This unit is a drop-in replacement to restore laboratory uptime.

Detailed Technical Specifications

System Compatibility

This module is a verified component for the following laboratory vacuum-integrated systems:

• AB Sciex QSTAR Series: QSTAR Elite, QSTAR XL, QSTAR Pulsar.

• Applied Biosystems / MDS Sciex: Various high-performance MS/MS configurations.

• Vacuum Controllers: Used in tandem with turbo pump controllers requiring high-wattage DC inputs.

Key Performance Features

• Active Power Factor Correction (PFC): Ensures clean power delivery in sensitive lab environments with high electronic noise floor requirements.

• Revision B Architecture: Includes enhanced thermal protection and over-voltage circuitry over earlier revisions.

• Mission-Critical Reliability: Designed for the 24/7 duty cycles of university research centers and commercial labs.
