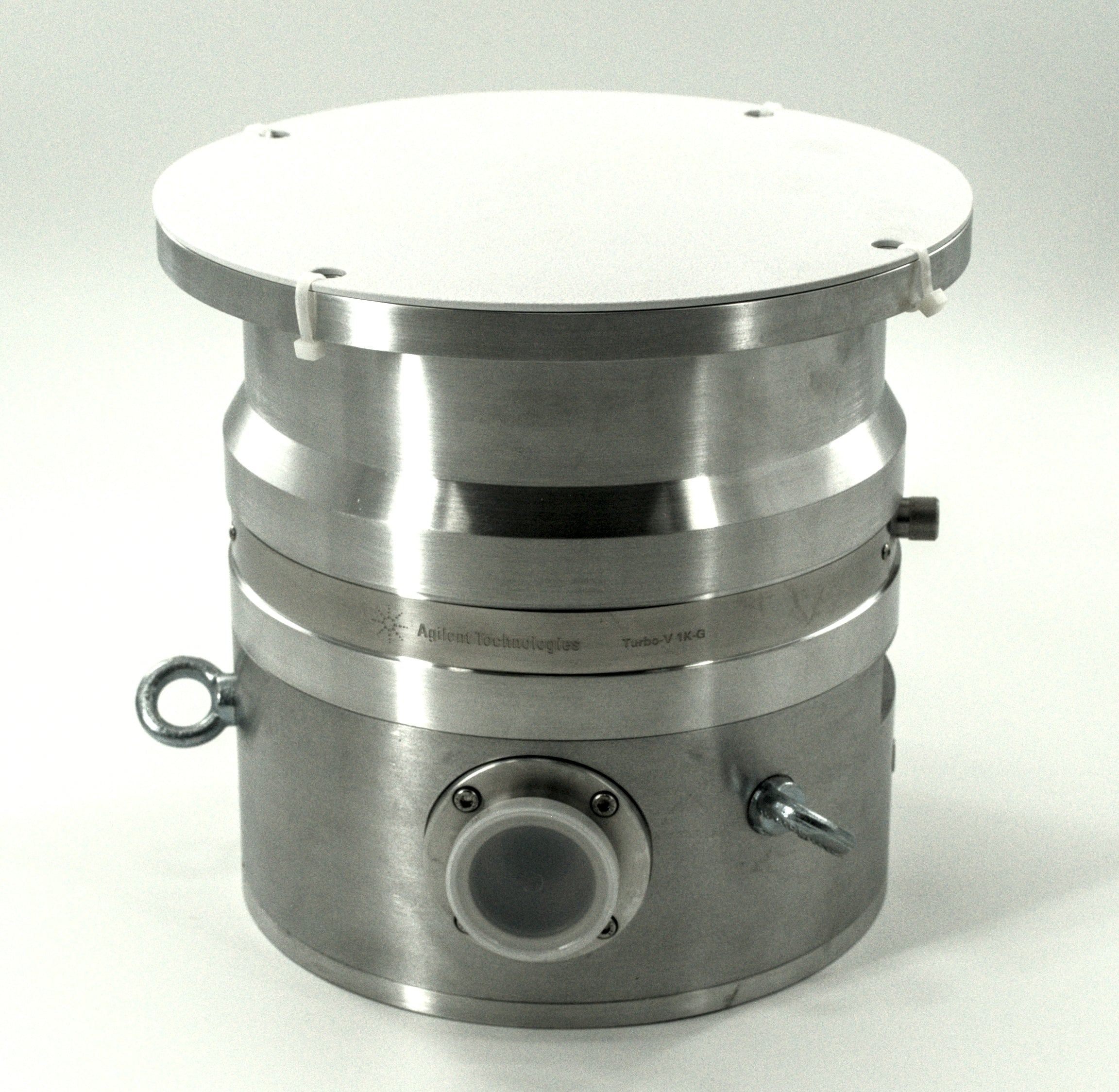

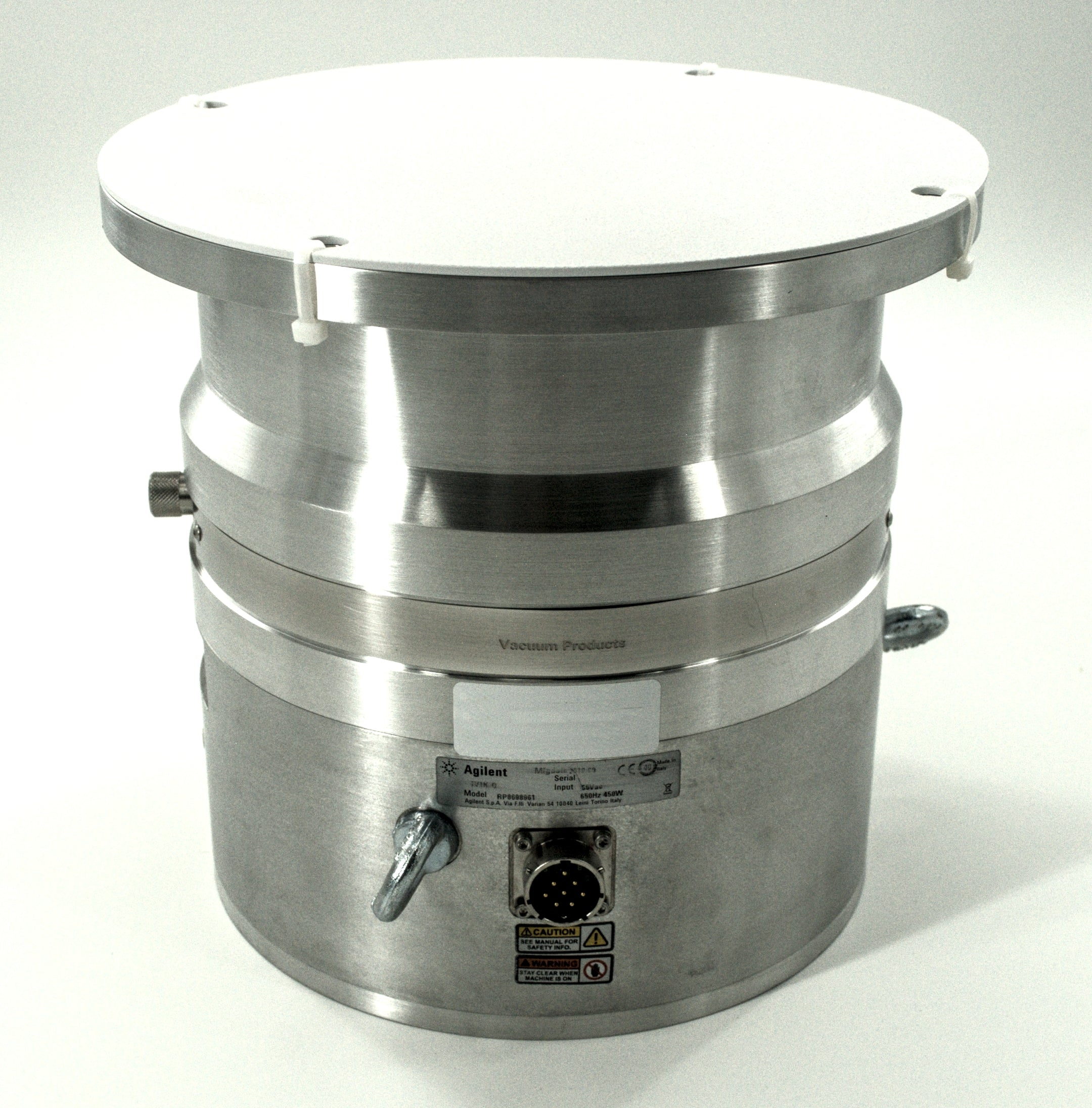

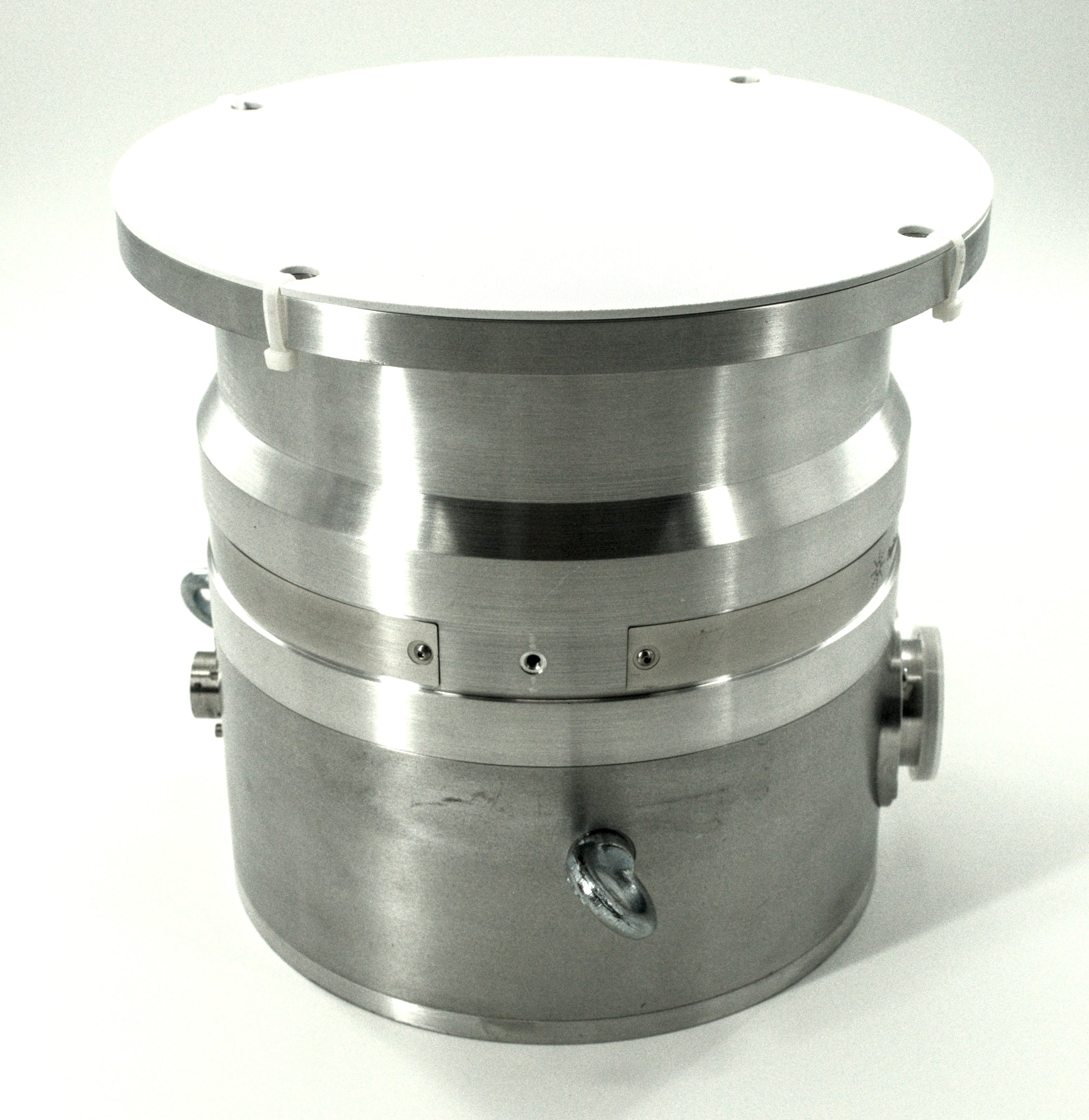

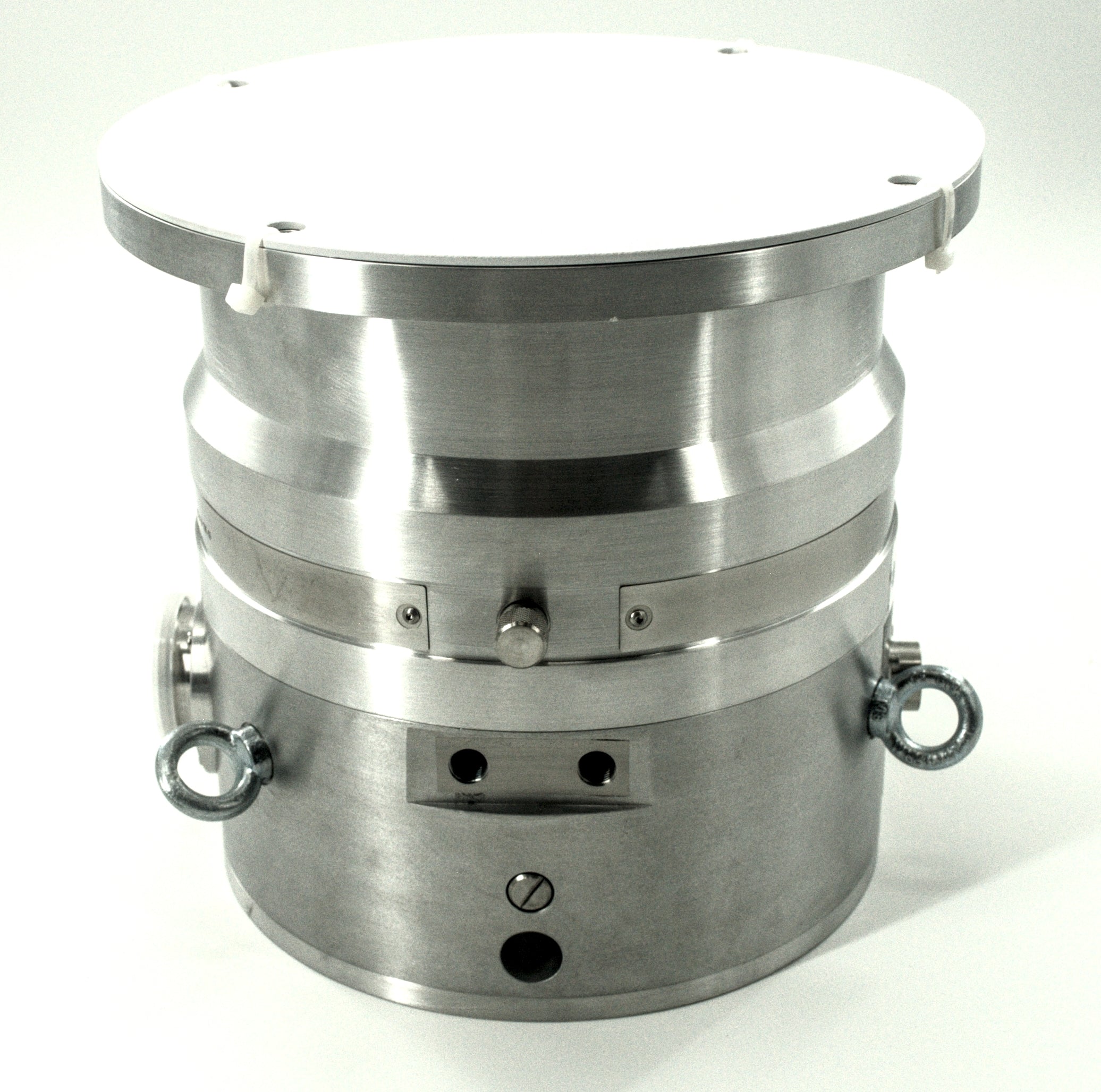

Agilent Turbo-V 1K-G

Name: Agilent Turbo-V 1K-G
Brand: Agilent
Price: 7695.00 USD
Availability: InStock

Condition: Refurbished

In Stock

The Agilent Turbo-V 1K-G is a rugged, application-specific turbomolecular vacuum pump engineered specifically for harsh industrial manufacturing environments and high-gas-load applications. Featuring an optimized internal architecture designed to handle exceptionally high continuous flows of Argon under high thermal stress, it stands as the premier pumping solution for the thin-film deposition and vacuum coating industries.

Equipped with dry-lubricated ceramic ball bearings and an advanced integrated cooling network, the Turbo-V 1K-G guarantees hydrocarbon-free ultra-high vacuum (UHV) performance with virtually zero routine maintenance required, regardless of its mounting orientation.

Key Features & Benefits

Optimized for Thin Film & Coating: Engineered explicitly to sustain high throughputs of heavy noble gases (such as Argon) used in PVD, solar, and flat-panel display manufacturing.
Maintenance-Free Bearings: Dry-lubricated ceramic bearings offer lifetime lubrication, high contamination resistance via dynamic protection/labyrinth seals, and zero oil contamination risk.
Flexible Mounting Position: Robust design undergoes rigid structural testing allowing operation at any orientation angle.
Integrated Gas Purge: Standard gas purge port delivers robust bearing protection against particulate and corrosive process contaminants.
Advanced Control Options: Compatible with both compact, on-board Navigator controllers and traditional 19-inch Rack-mount controllers featuring standard RS232/RS485 and optional Profibus interfaces.

Technical Specifications

Vacuum Performance

Parameter	Specification
Pumping Speed (DN 200 ISO-F)	$N_2$ : 1,080 L/s \| Ar: 1,040 L/s \| He: 1,150 L/s \| $\| $$ : 730 L/s
Pumping Speed (DN 160 ISO-F)	$N_2$ : 810 L/s \| Ar: 750 L/s \| He: 950 L/s \| $\| $$ : 680 L/s
Compression Ratio	Ar: $>5 \times 10^8$ \| $$N_$ : $$>5 \times 10^$ \| He: $$>4 \times 10$ \| $\| $$ : $: $1.5 \times 1$
Base Pressure	$<1 \times 10^{-10}$ mbar ( $<7.5 \times 10^{-10}$ Torr)

Mechanical & Operational

Parameter	Specification
Nominal Rotational Speed	45,500 rpm (High Speed: 761 Hz / Low Speed: 500 Hz)
Start-Up Time	< 5 minutes
Recommended Forepump	$>20 \text{ m}^3\text{/h}$ (e.g., Agilent TriScroll 600 or DS 602)
Cooling Requirement	Water-cooled
Vibration Displacement	$<0.01 \ \mu\text{m}$ at the inlet flange
Maximum Flange Bakeout Temp	80°C max (ISO Flange)
Weight	26.8 kg (59.1 lbs)

Electrical Requirements

Parameter	Specification
Input Voltage / Frequency	100 to 240 Vac (±10%) \| 50 / 60 Hz
Max Input Power	600 VA
Max Operating Power	400 W (using $N_2$ via Water Cooling) \| 260 W (using Ar via Air Setting)
Standby Power	30 to 35 W
